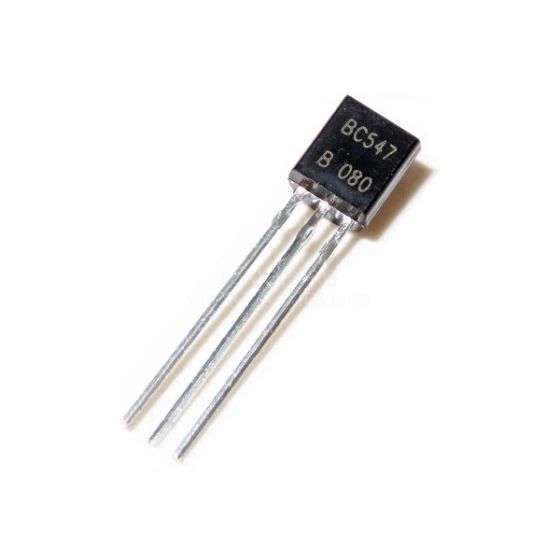

ترانزیستور BC547 نوع NPN پکیج TO-92
ترانزیستور BC547 نوع NPN پکیج TO-92

ترانزیستور BC547 نوع NPN پکیج TO-92

[S3-0075]
گارانتی اصالت و سلامت فیزیکی کالا جزئیات
30 هزار تومان تخفیف اولین خرید با کد HELLO (حداقل خرید 300 هزار تومان)
موجودی: موجود نیست
کد انبار
S3-0075

The BC547 is a general-purpose NPN bipolar junction transistor designed for low-power switching and amplification applications. It is widely used in hobby, educational, and industrial electronic circuits due to its stable performance, low noise, and easy availability. With a TO-92 through-hole package, it is simple to mount on PCBs and breadboards, making it ideal for signal processing, sensor interfaces, and small control circuits.

Specifications of Transistor BC547

  • Transistor Type: NPN Bipolar Junction Transistor

  • Package: TO-92-3 (Through Hole)

  • Operating Voltage (VCEO): 45V

  • Operating Current (Collector): 100mA

  • Power Dissipation: 500mW

  • Collector-Base Voltage (VCBO): 50V

  • Emitter-Base Voltage (VEBO): 6V

  • Collector-Emitter Saturation Voltage: 250mV

  • Gain Bandwidth Product (fT): 300MHz

  • Operating Temperature: -65°C to +150°C

  • Technology: Silicon (Si)

Datasheet of Transistor BC547
