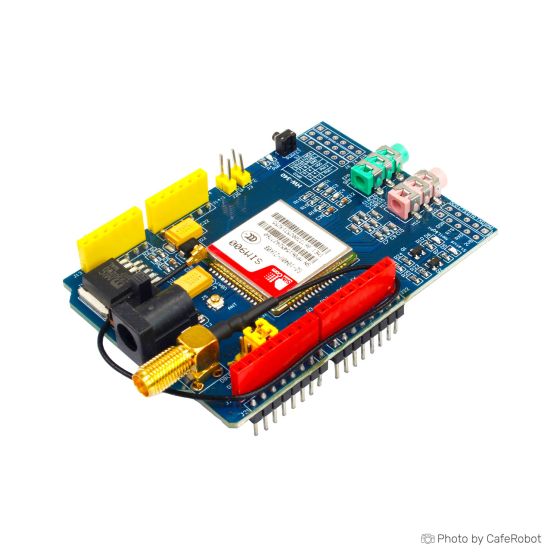

ماژول GSM با قابلیت اتصال GPRS و ارسال و دریافت پیامک SIM900 یک شیلد توسعه است که به راحتی روی برد آردوینو قرار میگیرد و امکانات مختلف ارتباطات موبایل را فراهم میآورد. با استفاده از این ماژول میتوان علاوه بر ارسال و دریافت پیامک (SMS)، تماسهای صوتی برقرار کرد. این ماژول از فناوری GPRS پشتیبانی کرده و امکان ارسال دادهها به صورت بیسیم را برای پروژههای مختلف مهیا میسازد. همچنین این ماژول بهطور کامل با بردهای مختلف آردوینو سازگار است و میتواند در پروژههایی مانند کنترل از راه دور، اندازهگیری بیسیم و دستگاههای هوشمند خانگی استفاده شود.
مشخصات فنی ماژول GSM SIM900
- قابلیتها: ارسال و دریافت پیامک (SMS)، تماسهای صوتی، انتقال دادههای GPRS
- پشتیبانی از باندها: 850/900/1800/1900 MHz
- تغذیه: نیاز به آداپتور 9V 2A
- پشتیبانی از انواع ارتباطات: SMS، تماس صوتی، GPRS
- پینهای ارتباطی: پینهای استاندارد 2.54 میلیمتری
- پشتیبانی از بوردهای آردوینو: سازگار با تمام بوردهای آردوینو
- میکروفون و هدفون: دارای سوکت هدفون و میکروفون برای تماس
- پشتیبانی از پورتهای سریال: پشتیبانی از پورتهای سریال سختافزاری (D0/D1) و نرمافزاری (D2/D3)
- خازن سوپر: دارای خازن سوپر برای پشتیبانی از ساعت RTC در صورت قطع برق
- سیم کارت: سیم کارت باید باز شده باشد
- سرعت ارتباطی: 19200 bps (پروتکل 8-N-1)
توجه: برای استفاده از این ماژول به تغذیه مناسب نیاز است. پیشنهاد میشود برای تغذیه از آداپتور 9V 2A استفاده کنید. همچنین در حال حاضر هیچ قانونی مبنی بر رجیستری ماژولهای مخابراتی در کشور وجود ندارد و فروشگاه کافه ربات مسئولیتی در این خصوص ندارد.
The GSM module with GPRS connection and SMS sending/receiving functionality, SIM900, is an expansion shield that easily attaches to the Arduino board and provides various mobile communication capabilities. Using this module, you can send and receive SMS, make phone calls, and use the GPRS technology for wireless data transmission in various projects. The module is fully compatible with different Arduino boards and can be used in applications such as remote control, wireless meter reading, and smart home devices.
Specifications of SIM900 GSM Module
- Capabilities: SMS sending/receiving, voice calls, GPRS data transmission
- Supported Bands: 850/900/1800/1900 MHz
- Power Supply: Requires a 9V 2A adapter
- Communication Support: SMS, Voice Calls, GPRS
- Pin Interface: Standard 2.54mm pin header
- Compatible with Arduino Boards: Compatible with all standard Arduino boards
- Microphone and Headphone: Has a headphone and microphone socket for calls
- Serial Ports: Supports both hardware serial ports (D0/D1) and software serial ports (D2/D3)
- Supercapacitor: Onboard supercapacitor for RTC backup in case of power loss
- SIM Card: SIM card must be unlocked
- Communication Speed: 19200 bps (8-N-1 protocol)
Note: This module requires a proper power supply. It is recommended to use a 9V 2A adapter for power. Additionally, there is currently no law regarding the registration of telecommunications modules in the country, and the seller does not take responsibility for any issues related to the operation of these modules.
