آموزش راه اندازی سنسور فاصله سنج التراسونیک SRF05 با آردوینو

/*

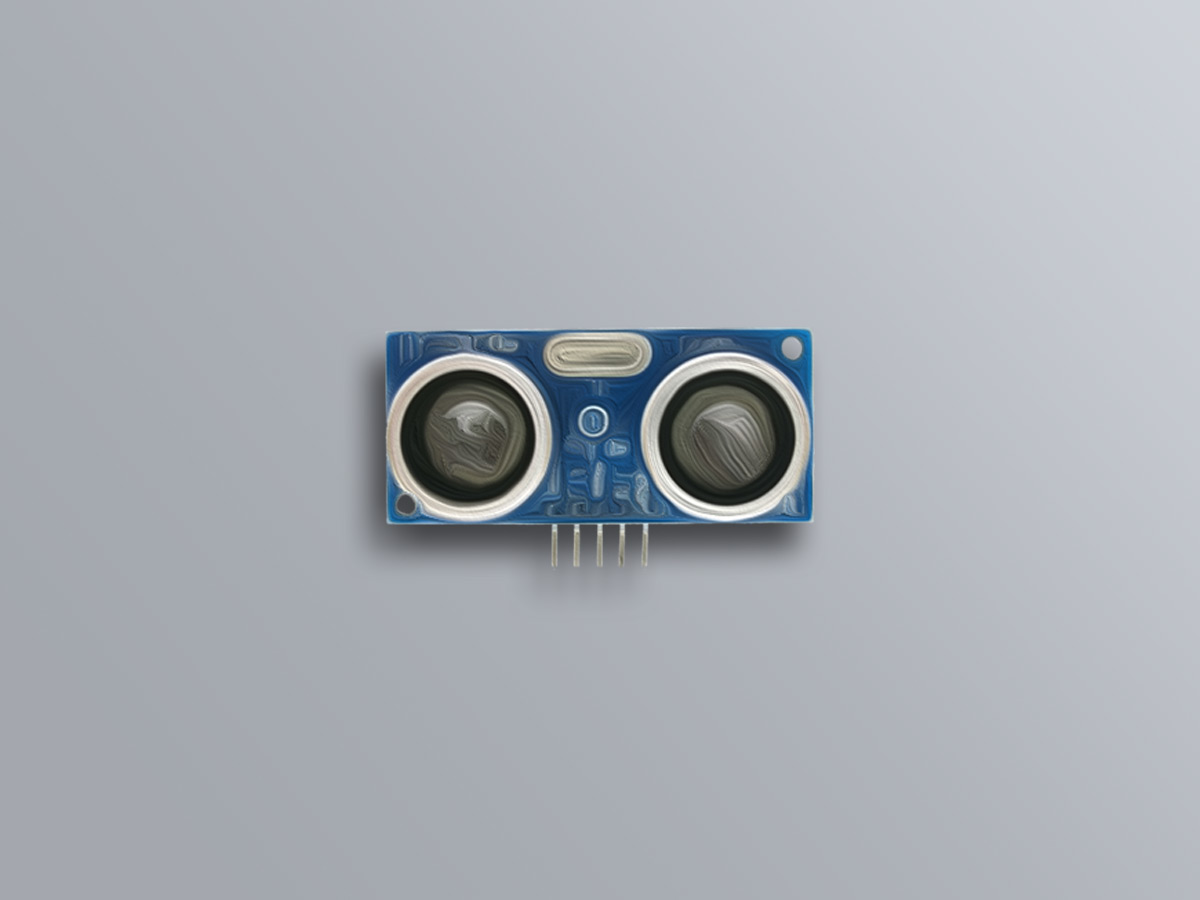

  SRF005 Ultrasonic Sensor
  modified on 22 Sep 2020
  by Mohammad Reza Akbari @ Electropeak
  Home<iframe class="wp-embedded-content" sandbox="allow-scripts" security="restricted" style="position: absolute; clip: rect(1px, 1px, 1px, 1px);" title="&#8220;Home&#8221; &#8212; Electropeak" src="https://electropeak.com/learn/embed/#?secret=bbZsyMfTcG" data-secret="bbZsyMfTcG" width="600" height="338" frameborder="0" marginwidth="0" marginheight="0" scrolling="no"></iframe>

*/

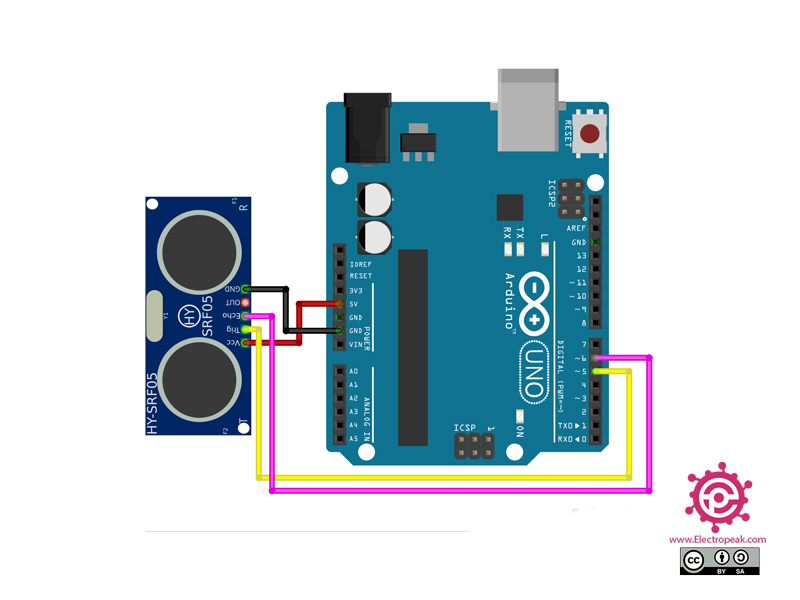

const int pingPin = 5; // Trigger Pin of Ultrasonic Sensor
const int echoPin = 6; // Echo Pin of Ultrasonic Sensor

long duration;


void setup() {
  pinMode(pingPin, OUTPUT);
  pinMode(echoPin, INPUT);
  digitalWrite(pingPin, LOW);
  Serial.begin(9600);
}

void loop() {
  digitalWrite(pingPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(pingPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  Serial.print(duration / 29 / 2);
  Serial.println(" cm");
  delay(300);
  }
