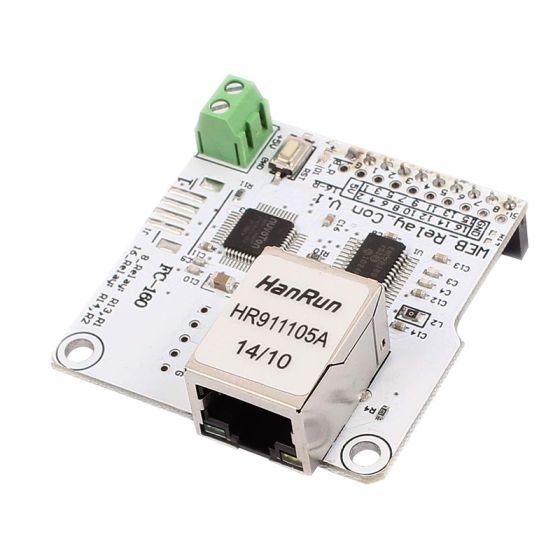

The ENC28J60 Network Controller for Relay Module is a versatile solution for controlling relays remotely through an Ethernet connection. With options for 8 or 16 relay channels, it is suitable for applications in home automation, industrial control, and centralized power management. It supports TCP/IP protocol and offers remote operation via network assistants or browsers, ensuring efficient and intelligent management of electrical systems.
Specifications of ENC28J60 Network Controller for Relay Module
8 Channel
-
External Power Supply Voltage: 5V DC, 2A
-
Number of Connectable Relays: 8
-
Working Temperature: -30°C to 85°C
-
Protocol: TCP/IP
-
Default IP Address: Configurable via IE browser (192.168.1.4)
-
Port Number: 3000
-
Dimensions: 48x48x17mm
16 Channel
-
External Power Supply Voltage: 5.5V DC, 2A max
-
Number of Relays That Can Be Connected: 16
-
Working Temperature: -30°C to 85°C
-
Protocol: TCP/IP
-
Default IP Address: Configurable via IE browser (192.168.1.4)
-
Dimensions: 48x48x17mm
How to Use of ENC28J60 Network Controller for Relay Module
-
Setup Network: Connect the module to a network using Ethernet. Configure the module using a network assistant or browser as specified.
-
Relay Control: Operate the relays remotely using the provided IP address and port number.
-
Power Supply: Ensure an appropriate external power supply (5V or 5.5V DC) based on the module type.
-
Applications: Ideal for intelligent management in home improvement, industrial automation, store monitoring, and more.
Datasheet of ENC28J60 Network Controller for Relay Module
Datasheet: Not available
