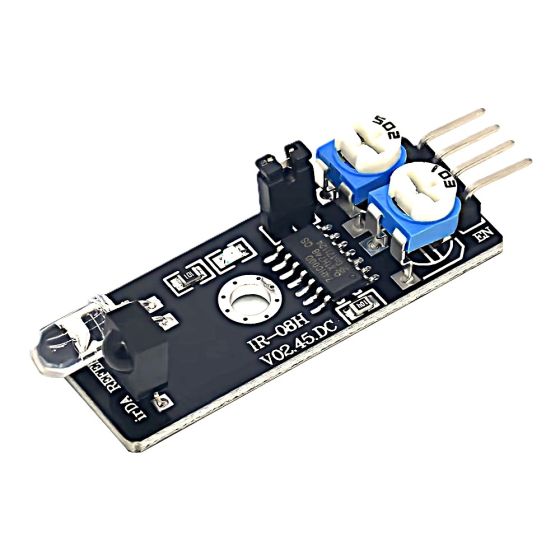

ماژول سنسور فاصله سنج و تشخیص مانع مادون قرمز
- +25 4 % 58٬760 تومان
- +100 6 % 57٬440 تومان
- +300 9 % 56٬120 تومان
- +500 11 % 54٬800 تومان
- +1000 13 % 53٬480 تومان

ماژول سنسور فاصلهسنج و تشخیص مانع مادون قرمز، یک ابزار کارآمد برای تشخیص موانع در فاصلههای 2 تا 40 سانتیمتر است. این سنسور با ولتاژ کاری 3.3 تا 5 ولت و جریان حدود 20 میلیآمپر کار میکند. ماژول سنسور تشخیص مانع، به ویژه برای پروژههای رباتیک و خودروهای هوشمند طراحی شده است و به کاربر امکان میدهد تا موانع را شناسایی کرده و بهطور خودکار از آنها دوری کند. این ماژول بهطور ساده قابل اتصال و استفاده است و دارای نشانگر LED برای نمایش وضعیت تشخیص موانع میباشد. همچنین، با استفاده از پتانسیومتر تنظیمی موجود بر روی ماژول، کاربر میتواند محدوده تشخیص را تنظیم کند.
مشخصات فنی ماژول سنسور فاصله سنج و تشخیص مانع مادون قرمز
- مدل: IR-08H V02.45.DC
- ولتاژ کاری: DC 3.3V-5V
- جریان کاری: 20mA
- دمای کاری: -10°C تا 50°C
- فاصله تشخیص: 2-40 سانتیمتر
- رابط IO: 4-wire interfaces (- / / S / EN)
- خروجی سیگنال: سطح TTL (سطح پایین در صورت وجود مانع، سطح بالا در صورت عدم وجود مانع)
- تنظیمات: دارای مقاومت چند دور برای تنظیم
- زاویه موثر: 35 °
- ابعاد: 28x23mm
Arduino KY-032 Obstacle avoidance sensor modules Infrared Obstacle Avoidance Sensor returns a signal when it detects an object in range. The range of the sensor is around 2-40 cm distance. It operates at 3.5 to 5 volts at around 20 milliamps. The Obstacle Avoidance Sensors usually come in two types – with 3 and 4 pins. This is the 4 pin version Sensor Module and has an optional Enable pin. An infrared obstacle avoidance sensor is designed to detect obstacles or the difference in reflective services. This sensor is made with black and white lines tracing the car ran without a black line on white paper, available in concrete The yellow complex environment such as the black line patrol track. As long as the black line around the slightly lighter color than black can, eliminating the traditional moves so that environmental layout easier. Frequency adjustment potentiometer is used to adjust the carrier frequency of the infrared emission tube because the integration receiver 38KHZ in particular when the carrier frequency is the most sensitive. The 502 resistors clockwise transferred do (that is, the launch tube at maximum brightness), and then at a white wall tone 103 resistance, has been transferred to the sensing distance is the farthest so far so that the sensor will work in the best state
Features of Smart Car Infrared Obstacle Avoidance Sensor Module:
- Easy to assemble and use
- Onboard detection indication
- The effective distance range of 2cm to 40cm
- A preset knob to fine-tune distance range
- There is an obstacle, the green indicator light on the circuit board.
- Anti-jamming capability
Specifications of Smart Car Infrared Obstacle Avoidance Sensor Module:
- Model No : IR-08H V02.45.DC
- Working voltage: DC 3.3V-5V
- Working current: 20mA
- Operating temperature: -10°C to 50°C
- detection distance:2-40cm
- IO Interface: 4-wire interfaces (- / / S / EN)
- Output signal: TTL level (low level there is an obstacle, no obstacle high)
- Adjustment: adjust multi-turn resistance
- Effective angle: 35 °
- Size: 40mmX 16mm
