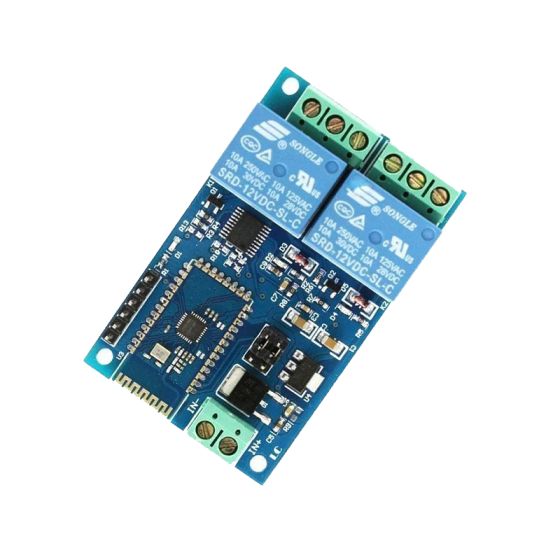

ماژول رله بلوتوثی دو کانال
- +25 6 % 445٬200 تومان
- +50 8 % 432٬100 تومان
- +100 11 % 419٬100 تومان
- +300 14 % 406٬000 تومان
- +500 17 % 393٬000 تومان

ماژول رله بلوتوثی دو کانال یک راهکار کارآمد و انعطافپذیر برای کنترل بیسیم دو رله مستقل از طریق بلوتوث است. این ماژول مناسب برای اتوماسیون خانگی، سیستمهای کنترل از راه دور، و پروژههای DIY میباشد. با استفاده از این ماژول، میتوانید دستگاههای الکتریکی را به راحتی از طریق گوشی هوشمند یا سایر دستگاههای دارای بلوتوث کنترل کنید. این ماژول با نصب آسان و عملکرد قابل اعتماد، تجربهای مدرن و کارآمد برای کاربران فراهم میکند.
مشخصات فنی ماژول رله بلوتوثی دو کانال
- ولتاژ کاری: 12 ولت DC
- جریان متوسط: کمتر از 100 میلیآمپر
- تعداد کانالها: 2 رله مستقل
- خروجی رله: دارای کنتاکتهای باز (NO) و بسته (NC)
- پروتکل ارتباطی: بلوتوث 2.1
- فاصله کنترل: حداکثر 10 متر (بسته به محیط)
- ابعاد: 40.5x65 میلیمتر
کاربردهای ماژول رله بلوتوثی دو کانال
- اتوماسیون خانگی
- سیستمهای کنترل از راه دور
- پروژههای DIY
- کنترل تجهیزات صنعتی یا خانگی به صورت بیسیم
نحوه استفاده از ماژول رله بلوتوثی دو کانال
- روشن کردن رله اول: A0 01 01 A2
- خاموش کردن رله اول: A0 01 00 A1
- روشن کردن رله دوم: A0 02 01 A3
- خاموش کردن رله دوم: A0 02 00 A2
The Bluetooth Relay Module 2 Way is a versatile and convenient module that allows wireless control of two independent relays via Bluetooth. This module is perfect for a wide range of applications including home automation, remote control systems, and DIY projects. With easy integration and reliable performance, it enables users to control electrical devices remotely using a smartphone or other Bluetooth-enabled devices.
Specifications of Bluetooth Relay Module 2 Way:
-
Operating Voltage: 12V DC
-
Average Current: <100mA
-
Relay Channels: 2 independent relays
-
Output Signals:
-
SPP - C Bluetooth serial (for wireless control)
-
-
Communication Protocol: Bluetooth 2.1
-
Relay Output: Normally open (NO) and normally closed (NC) contacts
-
Control Distance: Up to 10 meters (depending on the environment)
-
Dimensions: 40.5x65mm
-
Applications: Ideal for home automation, remote control systems, DIY projects, and other applications requiring wireless relay control.
How to use of Bluetooth Relay Module 2 Way:
Command Mode:
-
Turn on first relay :A0 01 01 A2
-
Turn off first relay :A0 01 00 A1
-
Turn on second relay :A0 02 01 A3
-
Turn off second relay :A0 02 00 A2
