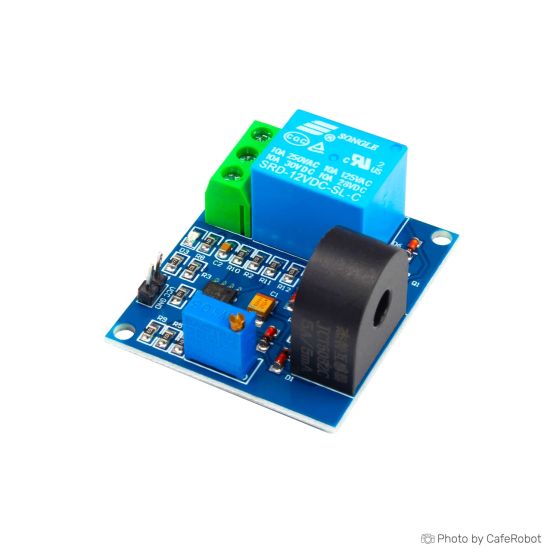

ماژول محافظت از جریان بالا 20~400Hz ,0~5A AC
- +25 4 % 178٬200 تومان
- +50 6 % 174٬300 تومان
- +100 8 % 170٬400 تومان
- +300 11 % 166٬500 تومان
- +500 13 % 162٬500 تومان

ماژول محافظت از جریان بالا AC یک ماژول محافظتی است که برای شناسایی و محافظت از شرایط جریان بیش از حد در مدارهای AC طراحی شده است. این ماژول عملکرد قابل اعتمادی در محدوده فرکانسی وسیع ارائه میدهد که آن را برای کاربردهای مختلف از جمله اتوماسیون صنعتی، حفاظت از موتور، و سیستمهای توزیع برق مناسب میسازد. طراحی جمع و جور آن امکان یکپارچگی آسان را فراهم میآورد و از این طریق حفاظت مؤثر در برابر جریانهای بیش از حد در سیستمهای مختلف الکتریکی ارائه میدهد.
مشخصات فنی ماژول محافظت از جریان بالا 20~400Hz ,0~5A AC
- ولتاژ کاری: 12V DC
- محدوده جریان: 0 تا 5A AC
- محدوده فرکانس: 20 تا 400Hz
- حساسیت ولتاژ-جریان: AC 5V-22V
- ابعاد: 44x38x35mm
- حداکثر قطر سیم شناسایی: 5.2mm
کاربردهای ماژول محافظت از جریان بالا 20~400Hz ,0~5A AC
- اتوماسیون صنعتی
- حفاظت از موتورهای الکتریکی
- سیستمهای توزیع برق
- کنترل و حفاظت در مدارهای AC
The 20~400Hz, 0~5A AC Overcurrent Protection Sensor Module is designed to detect and protect against overcurrent conditions in AC circuits. This module offers reliable performance across a wide frequency range, making it suitable for various applications including industrial automation, motor protection, and power distribution systems. Its compact design allows for easy integration, ensuring effective overcurrent protection in diverse electrical setups.
Specifications of 20~400Hz, 0~5A AC Overcurrent Protection Sensor Module:
- Operating Voltage: 12V DC
- Current Range: 0 to 5A AC
- Frequency Range: 20 to 400Hz
- **Voltage Current Detection Sensor:AC 5V-22V
- Dimensions: 44x38x35mm
- Maximum Detection Wire Diameter:5.2mm
Datasheet of 20~400Hz, 0~5A AC Overcurrent Protection Sensor Module:
http://www.icstation.com/images/uploads/Overcurrent Protection Sensor Module_1.jpg
