قیمت های پلکانی:
- +10 2 % 583٬900 تومان
- +25 5 % 566٬400 تومان
- +50 9 % 544٬600 تومان
- +100 12 % 522٬700 تومان
- +300 16 % 500٬900 تومان
گارانتی اصالت و سلامت فیزیکی کالا
جزئیات
موجودی:
کد انبار
SEN-10-069
597٬000 تومان
آموزشهای مرتبط
15 سنسور دما سازگار با آردوینو برای پروژه بعدی شما [2023]

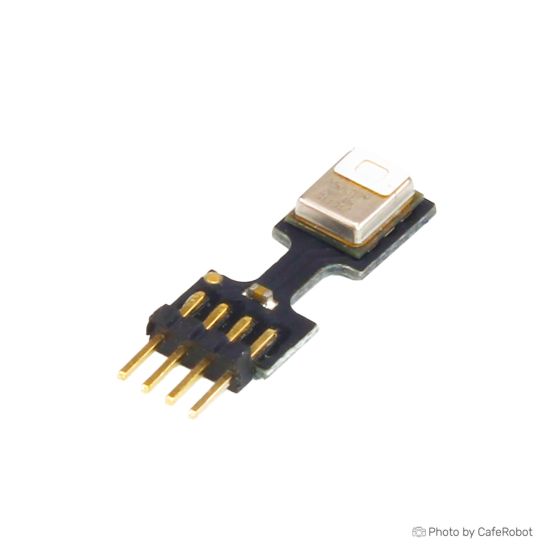

AHT15 temperature and humidity sensor uses standard pitch plug type. The connector can be easily replaced in the application. AHT15 is in protection waterproof and dustproof PTFE membrane that does not affect RH measurement response time. Allowing the sensor use in harsh environmental conditions (like spray water and high contact) Dust), ensuring the best precision performance, making the AHT15. The best choice in the most demanding application conditions.
Specification
- Communication protocol: I2C
- I2C Address: 0x38
- Supply Voltage: 1.8V~3.6V DC
- Measuring Temperature Range: -40°C ~ +85°C
- Measuring Humidity Range: 0~100%RH
- Humidity Accuracy: ±2% RH (25°C)
- Temperature Accuracy: ±0.3°C
- Dimensions: 17 x 6 x 2.3mm
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 1.8V~3.6V DC |
| Operating Current (mA) | 0.023 mA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 17 x 6 x 2.3mm |
| شیوه نصب | SMD (Surface Mount) |
| Output Type | I2C |
| Accuracy | ±0.3°C, ±2% RH |
| Resolution | Temperature: 0.01°C, Humidity: 0.024% RH |
| تولید کننده | ASAIR |
| Response Time | 8s |
| Measurement Range | Temperature: -40 to +85°C, Humidity: 0 to 100% RH |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Surface Mount |
| Chipset | AHT15 |
| Humidity Range | 0~100%RH |
| Relay Output | No |
| Humidity Accuracy | ±2% RH (25°C) |
| Protocols | I2C |
| Temp Accuracy | ±0.3°C |
