این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه میشود.

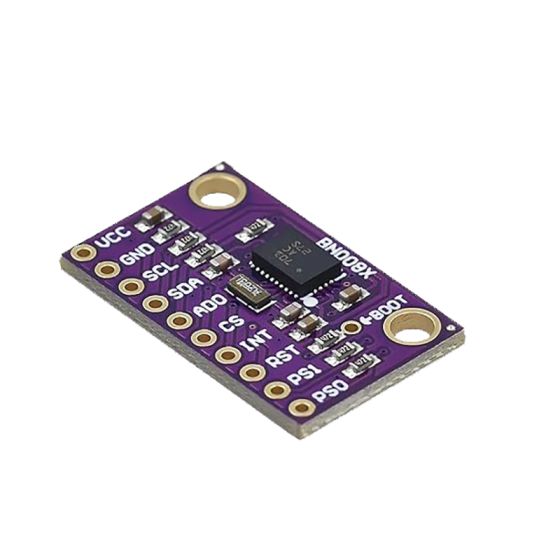

The BNO080 is a powerful 9-axis motion sensor module that integrates a gyroscope, accelerometer, and magnetometer for precise motion tracking. It supports multiple communication interfaces, including I2C, SPI, and UART, making it highly versatile for various applications like robotics, VR systems, and navigation. The BNO080 offers high accuracy for rotation vectors, accelerometer readings, and gyroscope performance, making it ideal for dynamic and static motion tracking tasks.
Specifications of BNO080 SPI/I2C 9-Axis Gyro Accelerator Magnetometer Module
-
Interfaces: I2C (up to 400kHz), SPI (up to 3MHz), UART (3Mbps), UART-RVC (115200kbps)
-
Rotation Vector Dynamic Error: 3.5°
-
Static Error: 2.0°
-
Gaming Rotation Vector Dynamic Error: 2.5°
-
Static Error: 1.5°
-
Heading Drift: 0.5°/min
-
Geomagnetic Rotation Vector Dynamic Error: 4.5°
-
Static Rotation Error: 3.0°
-
Gravity Angle Error: 1.5°
-
Linear Acceleration Accuracy: 0.35m/s²
-
Accelerometer Accuracy: 0.3m/s²
-
Gyroscope Accuracy: 3.1°/sec
-
Magnetometer Accuracy: 1.4μT
-
Dimensions: 26x15mm
