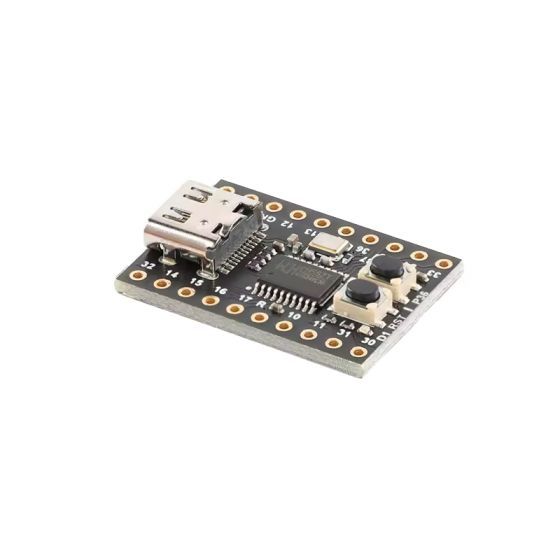

The CH552 MCU Development Board is a versatile and compact platform for developing and experimenting with embedded systems. Based on the enhanced E8051 microcontroller, it is compatible with the MCS51 instruction set. The CH552 boasts a remarkable execution speed of 8–15 times faster than the standard MCS51 and supports a 24MHz system frequency. Equipped with 16KB ROM, 256 bytes of iRAM, and 1KB xRAM (with DMA support), the board is ideal for projects requiring high performance. Integrated features include ADC, touch-key detection, timers, UARTs, SPI, and a USB 2.0 controller. This board is also compatible with Arduino and SDCC, making it an excellent choice for both beginners and advanced users.
Specifications of CH552 MCU Dev. Board with Type-C Connector
-
Processor Core: Enhanced E8051 compatible with MCS51 instruction set
-
Memory:
-
ROM: 16KB
-
iRAM: 256 bytes
-
xRAM: 1KB with DMA support
-
-
Operating Frequency: 24MHz maximum
-
Interfaces:
-
USB 2.0 FS
-
SPI, UART, ADC (4-channel, 8-bit), PWM
-
Capacitive touch-key detection
-
-
Power Supply: 3.3–5V
-
Dimensions: 18.1 x 26.1mm
-
Programming Methods:
-
USB and serial port
-
Supports Arduino, Keil, and SDCC development environments
-
-
Package Includes:
-
CH552 Core Board x1
-
2.54mm 10-pin headers x2
-
Applications of CH552 MCU Dev. Board with Type-C Connector
-
IoT and Smart Devices
-
Educational and Prototyping Projects
-
USB Device Development
-
Embedded Systems Testing and Control
-
Low-power Applications
More Information about CH552 MCU Dev. Board with Type-C Connector
You can download the CH552 datasheet and development resources from the following links:
