ماژول کنترل دما با قابلیت اتصال فن 4 سیمه 12 ولت PWM
ماژول کنترل دما با قابلیت اتصال فن 4 سیمه 12 ولت PWM ماژول کنترل دما با قابلیت اتصال فن 4 سیمه 12 ولت PWM ماژول کنترل دما با قابلیت اتصال فن 4 سیمه 12 ولت PWM ماژول کنترل دما با قابلیت اتصال فن 4 سیمه 12 ولت PWM

ماژول کنترل دما با قابلیت اتصال فن 4 سیمه 12 ولت PWM

[SEN-10-104]
گارانتی اصالت و سلامت فیزیکی کالا جزئیات
30 هزار تومان تخفیف اولین خرید با کد HELLO (حداقل خرید 300 هزار تومان)
موجودی: موجود نیست
کد انبار
SEN-10-104
تامین بصورت سفارشی

این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه می‌شود.

محصولات مرتبط

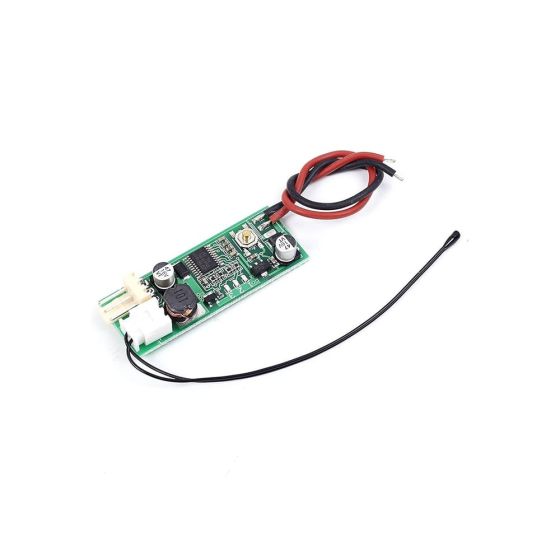

The DC 12V PWM Fan-Temperature Controller is a versatile and efficient module that allows for easy control and customization of fan speed. With its compact size and wide input voltage range, this module is suitable for a variety of fan applications, from computer cooling to ventilation systems. It supports a maximum output current of 5A, providing enough power for even the most demanding fans.

Equipped with a high-performance STK IC, this module offers precise and responsive fan speed control, ensuring optimal cooling and noise reduction. It also has a built-in temperature sensor and alarm function, providing real-time monitoring and protection for your devices. With its low power consumption and user-friendly design, the DC 12V PWM Temperature Controller / 4 Wire Fan Speed governor / PWM Speed Controller Switch is the perfect choice for upgrading your fan setup. Upgrade your cooling system with this top-of-the-line module today.

Specification of DC 12V, PWM Fan Temperature Controller:

  • Operating voltage : DC12V can work in 8-18V range

  • Fan interface:2510-4P lacks 1 bends (special interface for computer 4P fan

  • Consumption current: No more than 20mA

  • Fan current: Less than 3A

  • Drive output range: 10% -100

  • Operating temperature: -10 Celsius to 60 Celsius

  • Temperature probe parameters: NTC 50K B=3950

  • Probe temperature: Small black head 120 degrees

  • Ring probe 110 Celsius

  • Board size: 34mm*19mm*11mm (excluding extended interface)

  • Fan interface extends 8mm

  • Setting parameters default factory:

    • Low speed 20%.

    • Acceleration temperature 30 Celsius.

    • Acceleration width 5 Celsius.
