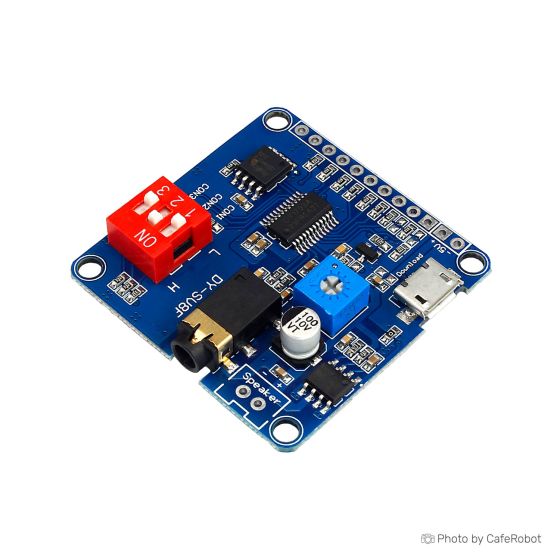

Enhance your projects with versatile sound capabilities using the DY-SV8F MP3 Voice Playback Module. This compact and easy-to-use module can play back MP3 files stored on a microSD card, offering a simple and effective way to add voice or music playback to your DIY projects, toys, or interactive displays. With support for a wide range of bit rates and a sampling rate of 24kHz, the DY-SV8F guarantees clear and high-quality audio output.
The DY-SV8F MP3 Voice Playback Module is not just about sound playback; it's also designed for flexibility and ease of use. It offers 30 levels of volume adjustment and 10 levels of EQ application, giving you control over the sound output. The module can be controlled using the onboard buttons, or remotely via serial commands. With its combination of versatility, audio quality, and ease of use, the DY-SV8F MP3 Voice Playback Module is a valuable addition to any project requiring sound playback.
Specification of DY-SV8F MP3 Voice Playback Module:
- Product Name: DY-SV8F Voice Playback Module
- Product Number: DY-SV8F
- Work Voltage: DC 5V
- Working Temperature range: -20℃~85℃
- Working Humidity range: 0%-95%RH
- Size: 35*35*4.5mm
Features of DY-SV8F MP3 Voice Playback Module:
- DY-SV8F integrates I/O subsection triggering, UART serial port control, and ONE_line single bus serial port control
- Onboard 5W Class D amplifier circuit and can directly drive 4ohm 3~5W speakers
- Support MP3, WAV decoding format
- Support 64Bbit(8Mbyte) Flash memory
- It can connect the computer to update audio files via a USB cable 3.5mm audio interface, Micro USB download interface, button module in one module
- Support MP3 and WAV decoding format
- Support sampling frequency (kHz): 8/11.025/12/16/22.05/24/32/44.1/48.
- 24-bit DAC output, dynamic range support 90dB, SNR support 85dB.
- Support 64Bbit(8Mbyte) Flash memory
- Support UART serial port control voice broadcast function. It can control playback, pause, selections, turn up and down the volume, and other functions, with the largest selection of 65535 songs
- The baud rate is 9600 bit/s
- Support I/O trigger function, 8bit I/O ports can trigger 8 kinds of music or 8 I/O combinations to trigger 255 songs
- Support One_line single bus serial port control, which can control playback, pause, selection, turn up and down the volume, and other functions
- Support 3 configuration I/O for mode selection to make 7 work modes
- Built-in 5W Class D amplifier circuit and can directly drive 4ohm 3~5W speaker
