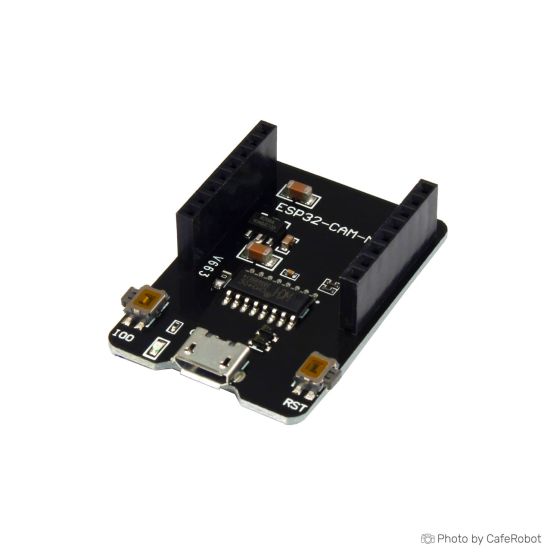

شیلد پروگرامر ESP32-CAM دارای رابط USB CH340
این کالا به تازگی به کافه ربات اضافه شده و بزودی موجود خواهد شد.
Dive into the world of IoT and embedded systems programming with the ESP32-Cam-MB USB to TTL Programmer Shield, a compact and highly efficient tool designed to streamline the process of programming your ESP32-CAM modules. This programmer shield bridges the gap between your computer's USB port and the serial TTL interface of the ESP32-CAM, providing a smooth communication channel for uploading code and debugging. It's equipped with a CH340 USB to serial converter, ensuring wide compatibility with various operating systems and a reliable connection for data transfer.
The ESP32-Cam-MB USB to TTL Programmer Shield is not just about functionality; it's also about convenience. It offers a fuss-free way to connect your ESP32-CAM module to your computer without the need for messy wiring or additional power supplies, as it can power the ESP32-CAM directly from the USB connection. With this programmer shield, you can effortlessly set up your ESP32-CAM for applications in home automation, remote monitoring, and more. Its user-friendly design ensures that even beginners can get started with their projects quickly and efficiently, making it an indispensable tool for both novices and seasoned developers in the field of electronics and programming.
Specification of ESP32-Cam-MB USB to TTL Programmer Shield:
- Working voltage: 4.75-5.25V
- SPIFlash: Default 32Mbit
- RAM: Internal 520KB + external 8MB PSRAM
- Wi-Fi: 802.11b/g/n/e/i
- Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
- Support interface (2Mbps): UART, SPI, I2C, PWM
- Support TF card: maximum support 4G
- IO port: 9
- Serial port rate: default 115200bps
- Spectrum range: 2400 ~2483.5MHz
- Antenna form: onboard PCB antenna, gain 2dBi
- Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
- Package method: DIP-16
- Transmit power: 802.11b: 17±2dBm (@11mbps )
- 802.11g: 14±2dBm (@54mbps )
- 802.11n: 13±2dBm (@mcs7 )
- Receiving sensitivity: CCK, 1Mbps: -90dBm
- CCK, 11Mbps: -85dBm
- 6Mbps(1/2BPSK): -88dBm
- 54Mbps(3/464-QAM): -70dBm
- MCS7 (65Mbps, 72.2Mbps): -67dBm
- Power consumption: Turn off the flash: 180mA@5V
- Turn on the flash and adjust the brightness to maximum: 310mA@5V
- Deep-sleep: The lowest power consumption can reach 6mA@5V
- Moderm-sleep: the lowest can reach 20mA@5V
- Light-sleep: the lowest can reach 6.7mA@5V
- Security WPA/WPA2/WPA2-Enterprise/WPS
- Working temperature: -20 ℃~ 70 ℃
- Storage environment: -40 ℃~ 125 ℃, <90%RH
