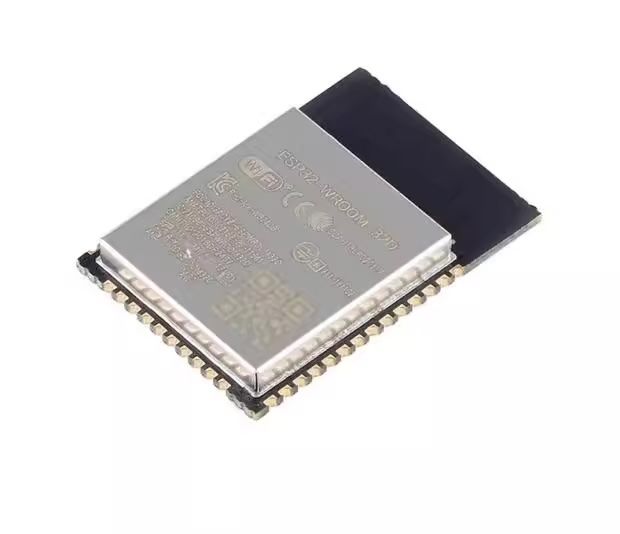

ماژول ESP32-WROOM-32D
[COM-03-104]
نسخه های دیگر این کالا:
نمایش نسخه های ناموجود
-
ماژول ESP32-WROVER-B دارای حافظه فلش 16 مگابایت تولید Espressif
COM-03-042 -
ماژول ESP32-WROOM-32 دارای حافظه فلش 4 مگابایت
COM-03-043 -
ماژول ESP32-WROOM-32D تولید Espressif
COM-03-091موجود نیست -
ماژول ESP32-WROOM-32U تولید Espressif
COM-03-092 -
ماژول ESP32-WROOM-32 تولید Espressif
COM-03-093موجود نیست -
ماژول ESP32-WROVER-IB تولید Espressif
COM-03-094
گارانتی اصالت و سلامت فیزیکی کالا
جزئیات
موجودی:
کد انبار
COM-03-104
محصولات مرتبط
ماژول توسعه درایور روبات همه کاره ESP32 برند Waveshare
1,737,600 تومان
برد توسعه Wemos دارای هسته وای فای ESP32 و نمایشگر OLED
372,900 تومان
ESP32-WROOM-32D and ESP32-WROOM-32U are powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.
ESP32-WROOM-32U is different from ESP32-WROOM-32D in that ESP32-WROOM-32U integrates a U.FL connector. For detailed information on the U.FL connector please see Chapter 10 in the datasheet attached. Note that the information in this data sheet is applicable to both modules. Any differences between them will be specified in the course of the document in the attachment.
Features of ESP32-WROOM-32D:
- ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
- 8 KBytes SRAM in RTC SLOW
- 8 KBytes SRAM in RTC FAST
- 1 Kbit of EFUSE, 256 bits MAC
- IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
- Interfaces: SD-card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
Specifications of ESP32-WROOM-32D:
- Operating Voltage (VDC) : 2.2 ~ 3.6
- ROM : 448 KB
- SRAM : 520
- Flash Memory: 4Mbit or 16Mbit (Optional)
- WIFI : 802.11 b/g/n/d/e/i/k/r
- Bluetooth Version : BLE v4.2 BR/EDR
- Wi-Fi Mode : Station/softAP/SoftAP+station/P2P
- Security : WPA/WPA2/WPA2-Enterprise/WPS
- Encryption : AES/RSA/ECC/SHA
- Current Consumption (mA) : 80
- Size : 20x18x3mm
