قطب نمای الکترونیکی سه محوره GY-282 HMC5983

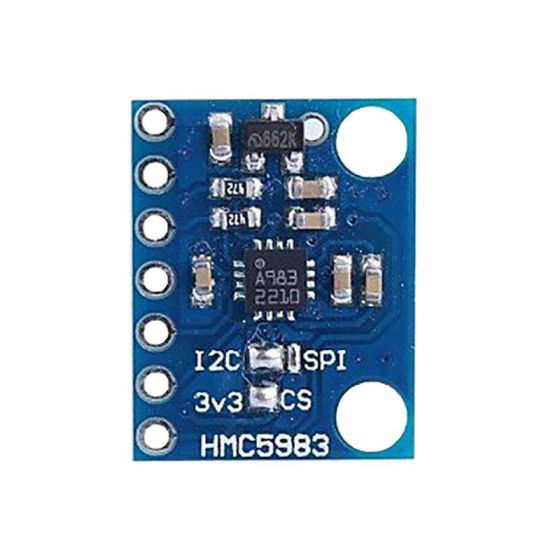

The GY-282 HMC5983 3-Axis Compass Magnetometer Module is a high-precision module compatible with the HMC5883L. It supports both I2C and SPI communication, making it versatile for various applications. With built-in temperature compensation and automatic offset correction, the module ensures stable and accurate heading angle readings. Its compact PCB design and high output frequency make it suitable for navigation, robotics, and motion sensing.

Specifications of GY-282 HMC5983 3-Axis Compass Magnetometer Module

• Chip : HMC5983

• Communication: I2C / SPI (optional)

• Power Supply: DC 3V ~ 5V

• Output Features:

  • Temperature-compensated data output

  • Automatic offset compensation

  • Maximum output frequency: 220 Hz

• Heading Angle Accuracy: 1° ~ 2°

• Dimensions: 14.5x18.5mm

Datasheet of GY-282 HMC5983 3-Axis Compass Magnetometer Module

Datasheet
