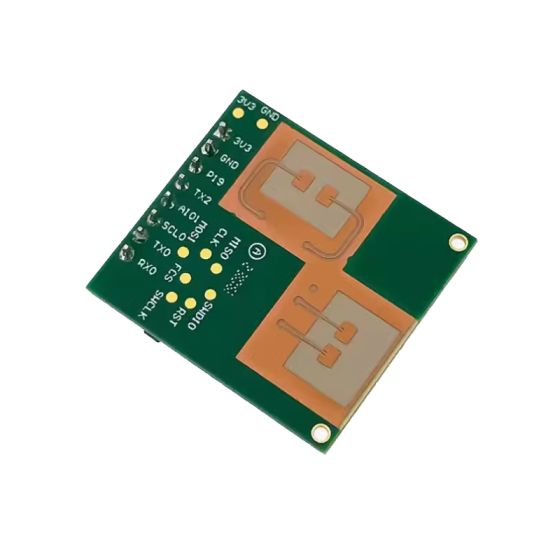

The Hi-Link LD6002 60G Heart Rate and Breathing Monitoring Module is a highly advanced radar sensor module developed using the ADT6101P chip. It features an integrated 57~64GHz radio frequency transceiver system, 2T2R PCB microstrip antenna, 1MB flash memory, and a radar signal processing unit powered by an ARM® Cortex®-M3 core. Utilizing FMCW radar technology, this module can detect surface reflection radar echoes from the human body to measure respiratory and heart rate frequencies in real-time.
Specifications of Hi-Link LD6002 60G Heart Rate and Breathing Monitoring Module
-
Operating Voltage (VCC): 3.1V - 3.5V
-
Operating Current (ICC): 600mA
-
Operating Temperature (TOP): -20°C to 85°C
-
Storage Temperature (TST): -40°C to 85°C
-
Dimensions: 25 x 31.5 mm
Functional Parameters
-
Breathing and Heartbeat Detection Distance (chest cavity): 0.4m - 1.5m
-
Respiratory Measurement Accuracy: 90%
-
Range of Respiratory Measurements: 9 bpm - 48 bpm
-
Heartbeat Measurement Accuracy: 90%
-
Range of Heartbeat Measurements: 60 bpm - 150 bpm
-
Refresh Time: 50 ms
-
Establish Detection Time: 1 min
-
Maximum Number of Tests: 1
RF Characteristics
-
Service Frequency: 58GHz - 62GHz
-
EIRP: 12 dBm
-
Antenna Gain: 4 dBm
-
Horizontal Beam (-3dB): -60° to +60°
-
Vertical Beam (-3dB): -60° to +60°
How to use Hi-Link LD6002 60G Heart Rate and Breathing Monitoring Module
-
Power Supply: Ensure the module is powered with a voltage between 3.1V and 3.5V.
-
Connection: Utilize the universal UART interface for communication.
-
Installation: Place the module within 1.5m of the target area for accurate breathing and heartbeat detection.
-
Integration: Reserve the IO ports and communication interfaces for secondary development in various scenarios.
-
Monitoring: Utilize the module in smart home or health control systems for real-time respiratory and heart rate data.
Pin Definition of Hi-Link LD6002 60G Heart Rate and Breathing Monitoring Module
| Pin Order Number | Pin Name | Description | Remarks |
|---|---|---|---|
| 1 | 3V3 | POWER INPUT 3.3V | |
| 2 | GND | GND | |
| 3 | P19 | GPIO19 | Boot1 |
| 4 | TX2 | GPIO20 | |
| 5 | AIO1 | Analog IO | |
| 6 | SCL0 | GPIO07 | |
| 7 | TX0 | Connected to external serial port TX | |
| 8 | RX0 | Connected to external serial port RX |
