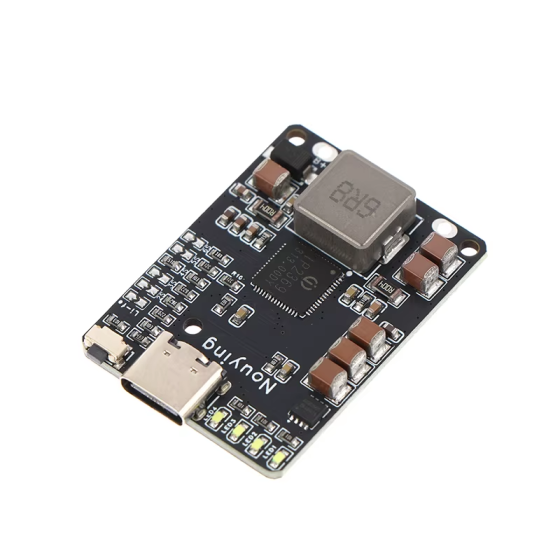

The IP2369 is a 45W intelligent charger and discharger module designed for 2S–6S lithium and lithium iron phosphate batteries. It features LED indicators for charge status, PD3.1 and QC3.0 fast charging protocols, and intelligent key control for easy operation. With multiple protections for voltage, current, and temperature, it ensures safe and efficient power management for drones, power tools, and power banks.
Specifications of IP2369 45W 2S~6S Lithium Battery Charger/Discharger Module
-
Input Voltage: Supports 2S–6S lithium (4.2V/cell) or LiFePO₄ (3.6V/cell) batteries
-
Interface: Type-C input/output
-
Power Output: 45W (PD3.1, QC2.0, QC3.0, QC3.0+ compatible)
-
Control: Single-click to display battery level; double-click to start/stop discharge
-
Protection: Overvoltage, undervoltage, overcurrent, short-circuit, overcharge, overdischarge, and temperature protection
-
LED Indicator: Displays charging status and battery level
-
Dimensions: 40x37mm
-
Operating Voltage: 5V–24V (depending on cell configuration)
-
Operating Current: Up to 3A
How to use of IP2369 45W 2S~6S Lithium Battery Charger/Discharger Module
-
Connect the Type-C port to a power source (supports PD3.1/QC3.0).
-
Connect the battery pack (2S–6S lithium or LiFePO₄).
-
Single-click the button to check the power level via LEDs.
-
Double-click the button to start discharging; repeat to stop.
-
For LiFePO₄ batteries, short the “1i-fe” pads.
-
For custom cell configurations, adjust jumpers by removing/shorting corresponding resistors.
Pinout
-
Type-C Port: Power input/output
-
BAT+ / BAT-: Battery connection terminals
-
LED Indicators: Show charging and power level
-
Button: Single-click (check status), double-click (toggle discharge mode)
