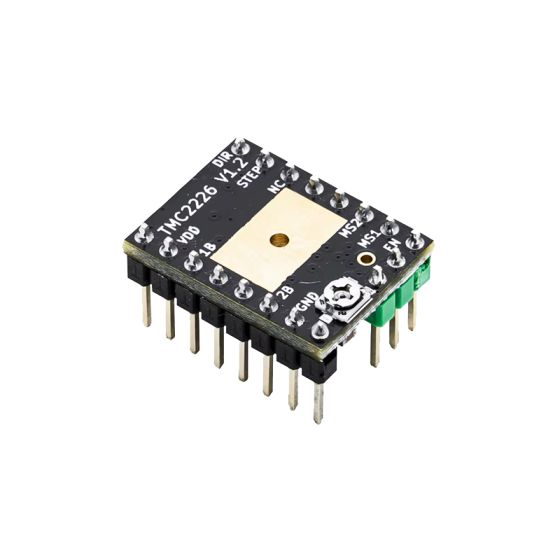

The Makerbase TMC2226 is a low noise, high current stepper motor driver module designed for efficient and quiet operation. Powered by the TMC2226 chip from Trinamic, it offers advanced features like StealthChop2 for silent operation and SpreadCycle for high torque and dynamics. This driver is compatible with StepStick and Pololu A4988, making it an ideal upgrade for various CNC, 3D printing, and robotics applications.
Specifications of Makerbase TMC2226 Stepper Motor Driver Module
- Stepper Driver Model: TMC2226
- Maximum Current: Up to 2A per phase (2.5A peak)
- Operation Voltage: 4.75 - 29V
- Logic Voltage: 3V - 5V
- Microstepping: Up to 64 microsteps
- Dimensions: ---
- Modes: StealthChop2 (silent operation) and SpreadCycle (high torque)
- Interfaces: Step/Dir with microstep interpolation up to 256 microsteps
- Features: StallGuard4 (sensorless homing), CoolStep (current limitation)
Pin Configuration of Makerbase TMC2226 Stepper Motor Driver Module
- VM: Motor power supply (4.75 - 29V)
- GND: Ground
- VCC: Logic power supply (3V - 5V)
- DIR: Direction input
- STEP: Step input
- CFG0, CFG1, CFG2: Configuration pins for setting modes and features
- UART: UART interface for advanced configuration and control
- EN: Enable input
Datasheet of Makerbase TMC2226 Stepper Motor Driver Module
