این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه میشود.
Note: The motor is not included with the driver.

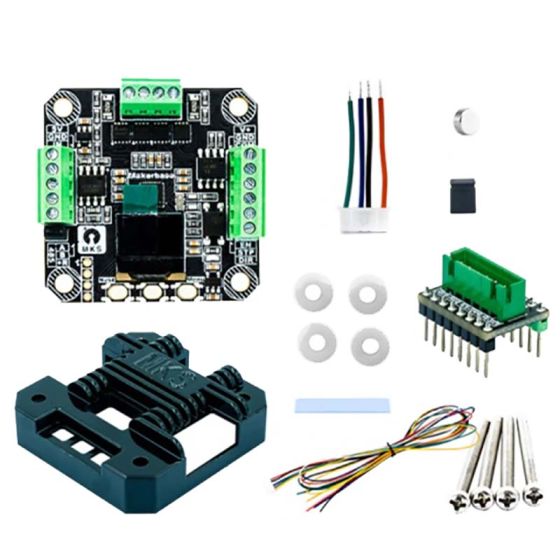

The MKS SERVO42D is a NEMA17 closed-loop stepper motor driver designed for applications requiring precision, efficiency, and quiet operation. It incorporates advanced features like RS485/CAN options, low vibration, and low noise. Ideal for CNC machines, 3D printers, and other automated equipment, this driver offers high-speed performance and accurate control.
Specifications of MKS SERVO42D NEMA17 Closed-Loop Stepper Motor Driver
-
Microprocessor: N32L403 (Cortex-M4)
-
MOSFET: AAP4008QD (40V, 20A)
-
Encoder: 14-bit magnetic encoder
-
Working Voltage: 12V-24V
-
Working Current: 0-3000mA
-
Maximum Speed: 3000 RPM+
-
Subdivision: 1-256 (default 16)
-
Pulse Signal Frequency: 160KHz
-
Pulse Signal Common: Positive
-
Update Frequency:
-
Torque: 20KHz
-
Velocity: 20KHz
-
Position: 20KHz
-
-
Motor Vibration: Low
-
Motor Noise: Low
-
Motor Temperature: Low
-
Communication Option: RS485/CAN
-
Dimensions: 38x38mm
