این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه میشود.

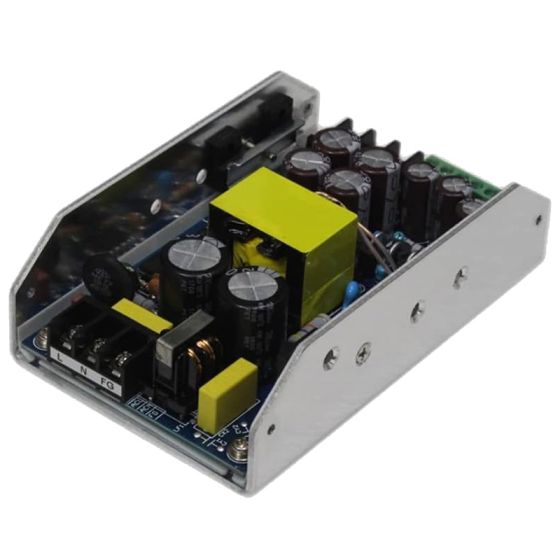

The Multiple Output Switching Power Supply Module with Direct and Reverse Voltage Output is a versatile and powerful solution designed to provide stable and reliable power to various electronic devices. This module offers a range of main voltages from ±24V to ±60V, with alternative outputs of ±15V and ±12V, catering to a wide array of applications. With a compact design and natural cooling, this power supply module delivers up to 350W of total output power, ensuring efficient performance with minimal ripple. The module is equipped with protection features, including over-current and over-power protection, making it a safe and reliable choice for your power supply needs.
Specifications of Multiple Output Switching Power Supply Module
-
Main Voltage Options: ±24V, ±36V, ±42V, ±48V, ±55V, ±60V
-
Alternative Voltage Options: ±15V, ±12V
-
Cooling: Natural cooling
-
Output Ripple: Less than 150mV
-
Total Output Power: 350W (with PFC function, PF value > 0.98)
-
Output Voltage Adjustment Range: 10%
-
Line Stability: ±0.5%
-
Load Stability: ±1%
-
Input Voltage: 88 ~ 264VAC
-
Start, Rise, Hold Time: 200ms, 50ms, 20ms at full load with 230VAC input voltage
-
Pressure Resistance:
-
Input to Output: 1.5KVAC
-
Input to Shell: 1.5KVAC
-
Output to Shell: 500VAC
-
-
Insulation Resistance: Input to Output, Input to Shell 500VDC / 100MΩ
-
Operating Temperature and Humidity: -20℃ to 60℃, 20% to 90% RH (non-condensing)
-
Storage Temperature: -40℃ to 60℃
-
Protection: Over-current, Over-power
-
Safety Standards: GB4943, UL60950, EN60950
Datasheet of Multiple Output Switching Power Supply Module
Datasheet: Not available
