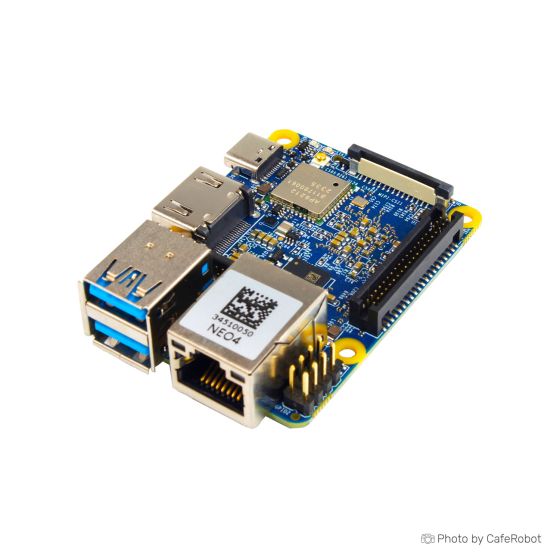

برد چهار هسته ای NanoPi NEO4
برد چهار هسته ای NanoPi NEO4 برد چهار هسته ای NanoPi NEO4 برد چهار هسته ای NanoPi NEO4 برد چهار هسته ای NanoPi NEO4

برد چهار هسته ای NanoPi NEO4

[MIN-07-013]
گارانتی اصالت و سلامت فیزیکی کالا جزئیات
30 هزار تومان تخفیف اولین خرید با کد HELLO (حداقل خرید 300 هزار تومان)
موجودی: موجود نیست
کد انبار
MIN-07-013

The NanoPi NEO4 is a compact yet powerful single-board computer powered by the Rockchip RK3399 processor. It features a dual-core Cortex-A72 and a quad-core Cortex-A53 CPU, along with a Mali-T864 GPU for advanced graphics performance. With support for 4K video decoding, USB 3.0, PCIe, Gigabit Ethernet, and Wi-Fi/Bluetooth, it is ideal for embedded applications, media centers, and networking projects.

Specifications of NanoPi NEO4

  • SoC: Rockchip RK3399

  • CPU: Dual-Core Cortex-A72 (up to 2.0GHz) + Quad-Core Cortex-A53 (up to 1.5GHz)

  • GPU: Mali-T864 (supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, AFBC)

  • VPU: 4K VP9 & 4K 10-bit H265/H264 60fps decoding

  • RAM: 1GB DDR3-1866

  • Storage:

    • No onboard eMMC (eMMC socket available)

    • 1× MicroSD slot

  • Ethernet: Native Gigabit Ethernet

  • Wi-Fi/Bluetooth: 802.11 b/g/n, Bluetooth 4.0 combo module

  • Video Input: 1× 4-Lane MIPI-CSI (up to 13MP)

  • Video Output: HDMI 2.0a (supports 4K@60Hz, HDCP 1.4/2.2)

  • Audio Output: HDMI

  • USB Ports:

    • 1× USB 3.0 Host (Type-A)

    • 2× USB 2.0 Host (1× Type-A, 1× 2.54mm header)

    • 1× USB Type-C (supports USB2.0 OTG & power input)

  • GPIO & Expansion:

    • GPIO1 (40-pin): 2× I2C, 1× UART/SPI, 1× SPDIF_TX, up to 8× GPIOs

    • GPIO2: 1× 1.8V 8-channel I2S

    • GPIO3: Debug UART (3V, 1500000bps), USB 2.0 x1

    • PCIe: x2

    • PWM: x1

    • RTC Battery: 2-pin 2.54mm pitch pads

  • LEDs: 1× Power LED, 1× GPIO-controlled LED

  • Power Supply: 5V/3A

  • PCB: 8-layer, 60mm × 45mm

  • Operating Temperature: -20℃ to 70℃

OS Support

  • Android 8.1 (requires eMMC Module)

  • Lubuntu 16.04 (32-bit)

  • FriendlyCore 18.04 (64-bit)

  • FriendlyDesktop 18.04 (64-bit)

  • FriendlyWrt 19.07.1 (64-bit)

  • FriendlyWrt 23.05

  • OpenMediaVault

  • Armbian (3rd Party)

  • Kernel Version: Linux-4.4-LTS

  • Bootloader: U-boot-2014.10

Manufacture of NanoPi NEO4

Official Website
Wiki Documentation
