ماژول سنسور لرزش پیزوالکتریک
ماژول سنسور لرزش پیزوالکتریک ماژول سنسور لرزش پیزوالکتریک ماژول سنسور لرزش پیزوالکتریک ماژول سنسور لرزش پیزوالکتریک

ماژول سنسور لرزش پیزوالکتریک

[SEN-13-074]
گارانتی اصالت و سلامت فیزیکی کالا جزئیات
30 هزار تومان تخفیف اولین خرید با کد HELLO (حداقل خرید 300 هزار تومان)
موجودی: موجود نیست
کد انبار
SEN-13-074
تامین بصورت سفارشی

این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه می‌شود.

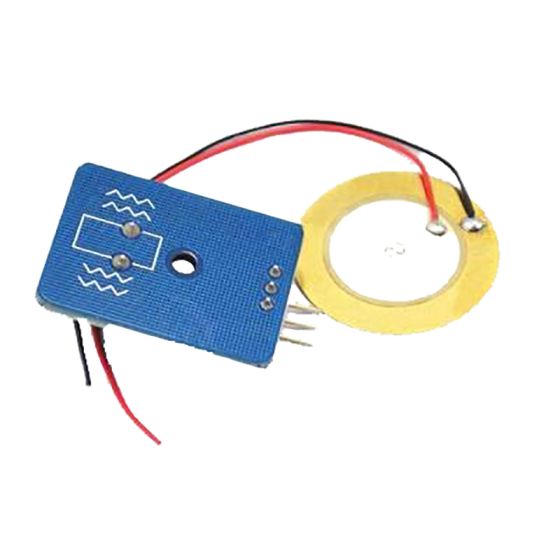

The Piezoelectric Ceramic Vibration Sensor detects vibrations through its piezoelectric ceramic material. It operates at 3.3V or 5V with minimal power consumption. This sensor can be used in various applications such as motion detection, vibration monitoring, and mechanical stress analysis. Its analog output allows easy integration with Arduino or other microcontrollers for precise signal detection in embedded systems.

Specifications of Piezoelectric Ceramic Vibration Sensor

  • Working Voltage: 3.3V or 5V

  • Working Current: <1mA

  • Operating Temperature Range: -10℃ to +70℃

  • Interface Type: Analog Output

  • Pin Definition:

    • S: Output signal (connect to Arduino analog input)

    • +: Voltage supply (VCC = 3.3 – 5V)

    • : Ground (GND)

  • Dimensions: 30mm x 23mm x 17mm

Datasheet of Piezoelectric Ceramic Vibration Sensor

Datasheet: Not available

مشخصات
Interface Type Analog
Operating Voltage (V) 3.3V - 5V
Operating Current (mA) <1mA
Operating Temp (°C) -10℃ to +70℃
Dimensions (mm) 30mm x 23mm x 17mm
Output Type Analog Voltage
Number of Axes 1-axis
Push Button No
Sensor Type Vibration Sensor
Measurement Principle Piezoelectric
Supply Current mA
