- +25 5 % 103٬700 تومان
- +50 7 % 101٬100 تومان
- +100 9 % 98٬500 تومان
- +300 12 % 96٬000 تومان
- +500 14 % 93٬400 تومان

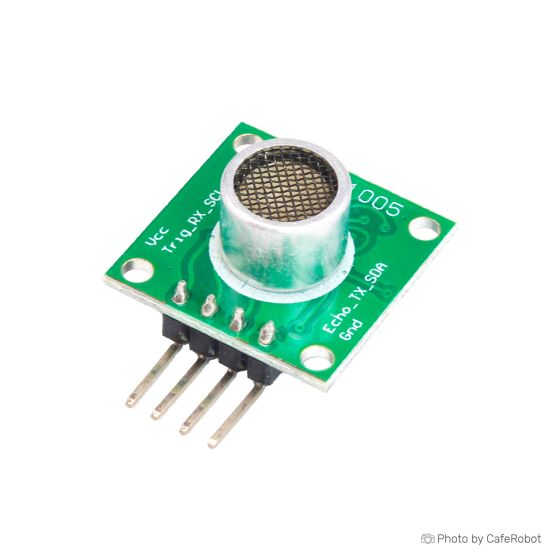

The RCWL-1005 Mini Ultrasonic Distance Sensor Module is a compact and highly efficient ultrasonic ranging module that integrates the RCWL-9624 transceiver chip. It offers a small blind area of 25cm and a maximum detection range of 4.5m, making it suitable for obstacle avoidance in robotics, liquid level measurement, and other distance-sensing applications. It operates on a low power consumption of 2mA and supports multiple output modes, including GPIO, UART, IIC, and 1-Wire. The module is fully compatible with HC-SR04 by default.
Specifications of RCWL-1005 Mini Ultrasonic Distance Sensor Module
-
Operating Voltage: 2.8V - 5.5V
-
Operating Current: 2mA (typical), max 3mA
-
Maximum Detection Distance: 4.5m - 5.5m
-
Blind Spot: 25cm - 26cm
-
Operating Frequency: 40KHz
-
Detection Accuracy: ±2%
-
Resolution: 1mm
-
Detection Angle: ±20° to ±30°
-
Measurement Cycle Time: 50ms
-
Output Interface Modes: GPIO, UART, IIC, 1-Wire
-
Operating Temperature:
-
Plastic Case Probe: -10°C to 60°C
-
Aluminum Shell Probe: -10°C to 70°C
-
-
Dimensions: ---
Datasheet of RCWL-1005 Mini Ultrasonic Distance Sensor Module
Datasheet: Not available.
