The RK097/RV097 1K Variable Resistor (Right) is a high-quality, adjustable resistor designed for fine-tuning resistance in electronic circuits. Its compact, right-angle design makes it ideal for space-constrained applications. This variable resistor is perfect for precision control in audio equipment, instrumentation, and other devices requiring adjustable resistance. With a durable construction, it ensures reliable performance and longevity.
Specifications of RK097/RV097 1K Variable Resistor:
- Resistance: 1K ohms, providing a wide range of adjustable resistance.
- Type: Right-angle design for easy integration into tight spaces.
- Tolerance: ±10%, ensuring precise control over resistance values.
- Adjustment: Smooth rotary adjustment for fine-tuning resistance.
- Rated power: 0.05W
- Resistance variation characteristics: A B C
- Residual resistance: 20ohm
- Slip noise: 100mV
- Linkage error: -40dB~odB±3 db Max
- Switching power: DC 12V 1A (5-pin, 8-pin)
- Rotation angle: 300±5°
- Rotational torque: 20-250gf.cm
- Mounting: PCB mount with through-hole pins for secure attachment.
Datasheet of RK097/RV0971K Variable Resistor:

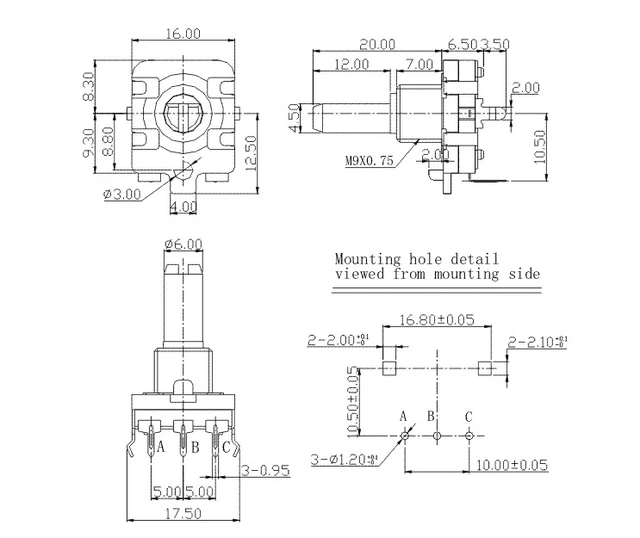

- RK097N: 3Pin Mono(without Switch) https://ae01.alicdn.com/kf/HTB1a0IrQpXXXXcTXXXXq6xXFXXXw.jpg_640x640Q90.jpg_.webp
- RV097NS: 5Pin Mono(with Switch) https://i.ebayimg.com/images/g/3KIAAOSwd9VjM8EZ/s-l1200.jpg
- RK097G: 6Pin Stereo(without Switch)https://unicomradio.com/wp-content/uploads/2022/08/RK097G-6-Pin-15-mm-Shaft-Rotary-Potentiometer-9.png
- RV097GS: 8Pin Stereo(with Switch) https://alltopnotch.co.uk/wp-content/uploads/Potentiometer-RV097NS-Dual-B50K-2-Pack-b.jpg
