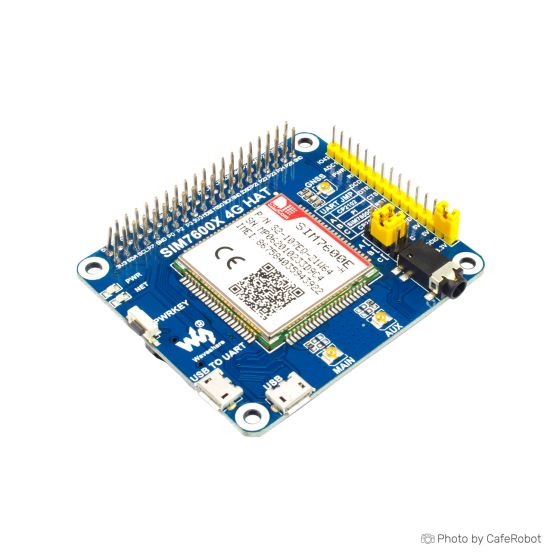

هت SIM7600G-H 4G برای رسپبری پای تولید Waveshare

Regular Price ‎4,100,000 تومان قیمت ویژه ‎3,900,000 تومان
موجودی: 10 عدد
کد انبار
COM-08-021
+50 1 % ‎3,855,000 تومان
+100 2 % ‎3,806,000 تومان
ارسال رایگان با پست پیشتاز اگر تا دیگر خرید کنید.
با پیک اختصاصی اگر تا دیگر خرید کنید. ویژه تهران
این محصول فقط در تعداد مضارب 2 ارائه می‌شود.

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)



WIKI: SIM7600G-H_4G_HAT

Sitehttps://www.waveshare.com/sim7600g-h-4g-hat.htm
