این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه میشود.

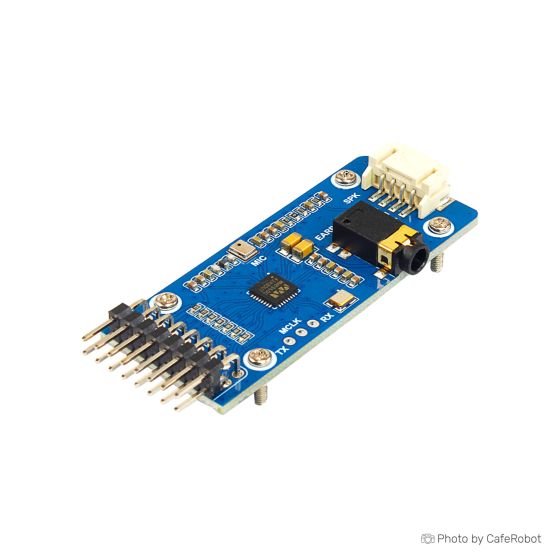

The Waveshare WM8960 Stereo CODEC Audio Module is a compact, low-power solution designed for high-quality audio encoding, decoding, and recording. Based on the WM8960 chip, this module supports stereo sound, integrates a high-quality MEMS silicon microphone, and can directly drive speakers to play music. With a range of supported audio sampling rates and additional sound effects like stereo and 3D surround, this module is ideal for various audio applications. It also includes a 3.5mm earphone jack for external mic recording and comes with development resources, including STM32 examples for both playing and recording audio.
Specifications of Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
-
CODEC: WM8960
-
Operating Voltage: 3.3V
-
Control Interface: I2C
-
Audio Interface: I2S
-
Audio Format: WAV
-
DAC Signal-to-Noise Ratio: 98dB
-
ADC Signal-to-Noise Ratio: 94dB
-
Earphone Driver: 40mW (16Ω @ 3.3V)
-
Speaker Driver: 1W per channel (8Ω BTL)
-
Supported Sampling Rates: 8/11.025/22.05/44.1/48KHz
-
Dimensions: 58 x 24 mm
-
Special Features:
-
Integrated MEMS silicon microphone
-
Onboard 3.5mm 4-segment earphone jack for external mic recording
-
Dual-channel speaker interface for direct speaker drive
-
Support for sound effects like stereo and 3D surround
-
More Information about Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
Wiki of Waveshare WM8960 Stereo CODEC Audio Module, Play/Record
