سنسور تعیین سطح مایع - سوئیچ شناور دوبل ZS25010-2
سنسور تعیین سطح مایع - سوئیچ شناور دوبل ZS25010-2 سنسور تعیین سطح مایع - سوئیچ شناور دوبل ZS25010-2

سنسور تعیین سطح مایع - سوئیچ شناور دوبل ZS25010-2

[SEN-20-033]
گارانتی اصالت و سلامت فیزیکی کالا جزئیات
30 هزار تومان تخفیف اولین خرید با کد HELLO (حداقل خرید 300 هزار تومان)
موجودی: موجود نیست
کد انبار
SEN-20-033
تامین بصورت سفارشی

این کالا از چرخه تجدید موجودی کافه ربات حذف شده و فقط بصورت پیش سفارش ارائه می‌شود.

محصولات مرتبط

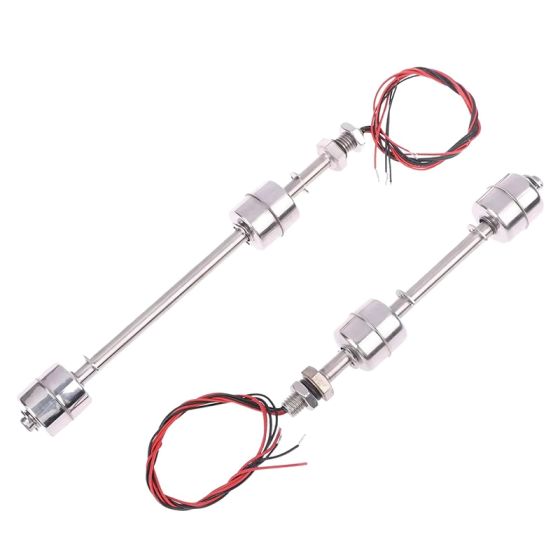

The ZS25010-2 Liquid Level Sensor - Double Balls Float Switch is a high-performance device designed to provide accurate liquid level detection in tanks, pools, and other liquid containers. This float switch is made from durable stainless steel, ensuring high corrosion resistance and longevity. The double ball design allows for more precise control over liquid levels, making it suitable for applications where dual-level detection is required. With a maximum switching voltage of 240V AC and a maximum contact rating of 10W, the ZS25010-2 is versatile for a variety of industrial and household uses. It supports vertical mounting and operates reliably in temperatures ranging from -10°C to +120°C.

Specifications of ZS25010-2 Liquid Level Sensor - Double Balls Float Switch

  • Color: Silver

  • Material: Stainless Steel

  • Max Contact Rating: 10W

  • Max Switching Voltage: 240V AC

  • Max Breakdown Voltage: 220V DC

  • Max Switching Current: 0.5A

  • Max Carry Current: 1A

  • Max Contact Resistance: 100mΩ

  • Operating Pressure: 10kg/cm²

  • Max Pressure: 0.2 MPa

  • Applicable Proportion: 0.75

  • Operating Temperature: -10°C to +120°C

  • Switch Operation: Reversible

  • Wire: PTFE High Temperature Line

  • Installation Method: Vertical Mounting

  • Thread Diameter: 10mm

Datasheet of ZS25010-2 Liquid Level Sensor - Double Balls Float Switch
